Main Characteristics

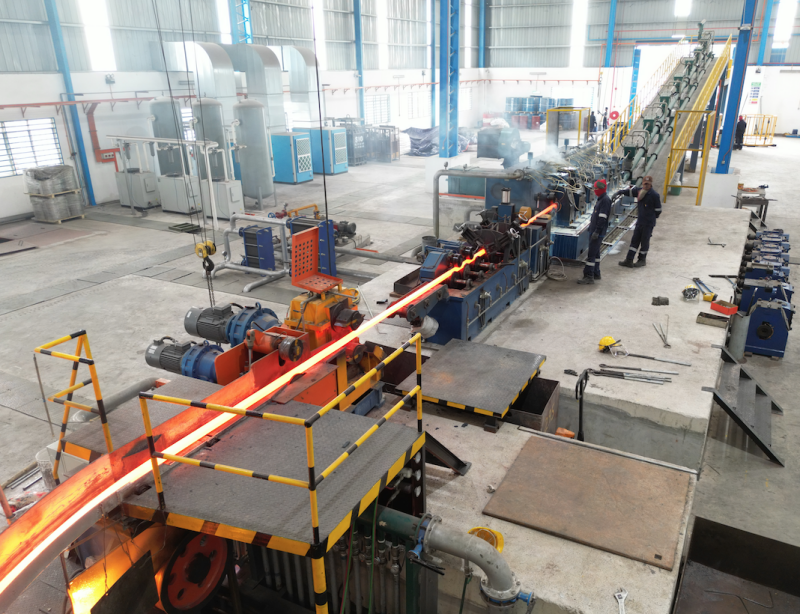

Equipped with shaft furnace and holding furnace to melt the copper cathode or using reverberatory furnace to melt the copper scrap.It is widely used for producing 8mm copper rod with the most economical way.
The production process:
Casting machine to get casted bar →roller shearer→straightener→deburring unit→feed-in unit→rolling mill→cooling →coiler
Options for rolling mill:

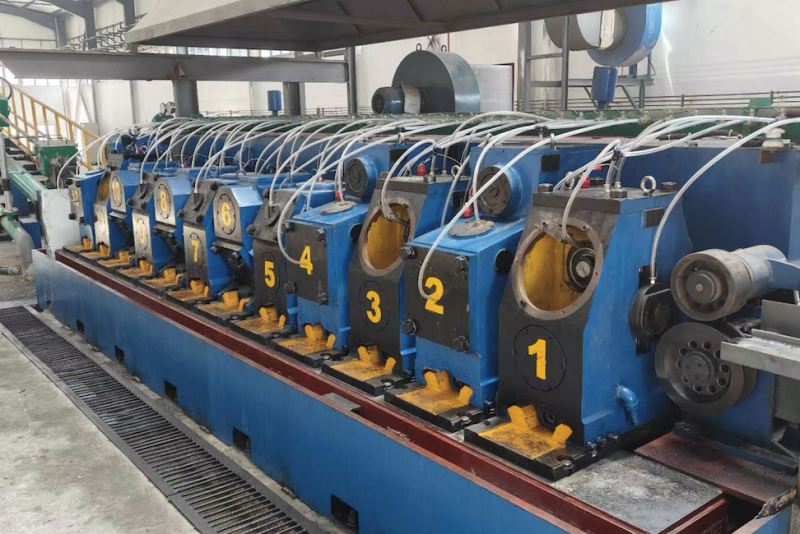

Type1 :3-roll machine,which is the normal type
4 stands of 2-roll, 6 stands of 3-roll and final 2 stands of 2-roll line
Type 2:2-roll machine,which is more advanced than the 3-roll rolling mill.
All stands of 2-roll(Horizontal and vertical),which is stable and reliable with longer service life.
Advantage:
-The roll pass can be adjusted online at any time
-Easy for maintenance because the oil and water are separated.
-Lower energy consumption
Post time: Dec-05-2024
