In the industry of metal processing, efficiency, quality, and cost-effectiveness are crucial. Traditional extrusion methods often require multiple steps, high energy consumption, and extensive labor. However, with the advancement of technology, continuous extrusion machine have emerged as a game-changer in the industry. If you’re in the business of copper and aluminum manufacturing, it’s time to explore how these machines can enhance your production process.
What is a Continuous Extrusion Machine?
A continuous extrusion machine is designed to produce high-quality copper and aluminum materials in a seamless, efficient way. Unlike traditional extrusion methods that require preheating and multiple processing steps, this technology enables direct extrusion of metal materials into desired shapes without interruption.
Process Principle

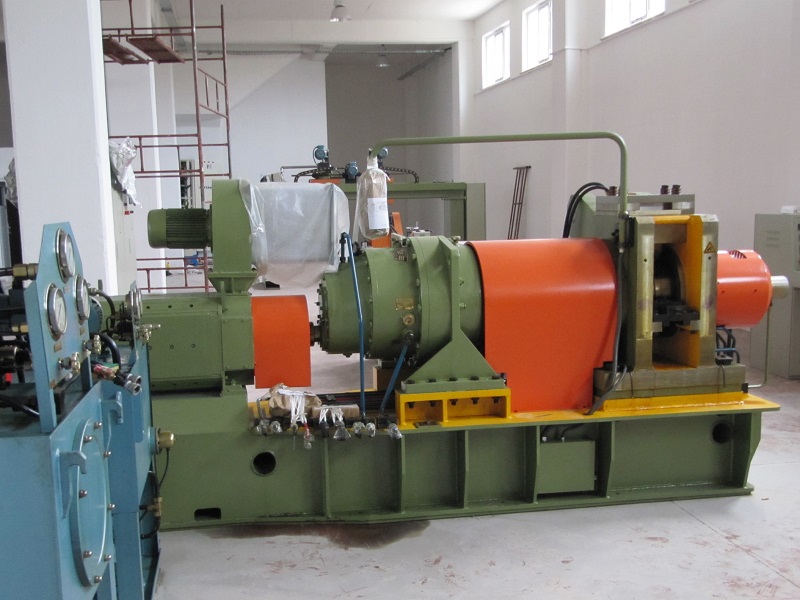

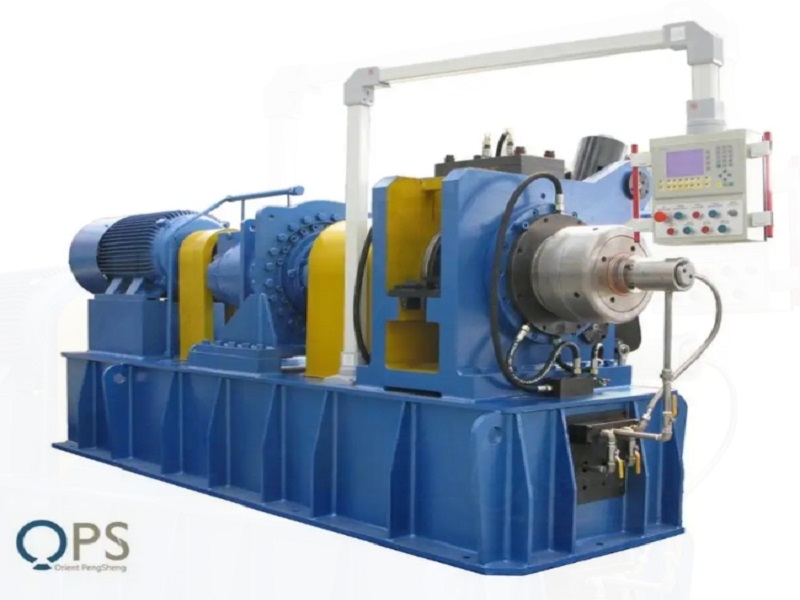

Our continuous Copper and aluminum extrusion machine adopts advanced technology in the world, continuously feeds the raw material like rod of certain specification into a revolving wheel with groove in its periphery. The rod is rubbed and extruded in the groove, generating sufficient temperature by enormous force of friction and extrusion and getting state of recrystallization, then to be extruded and formed in one time through cavity and the special die, which could promptly produce various copper and aluminum profile and aluminum tube.
Process Flow
- Coil Rod Pay-off – The raw material (copper or aluminum rod) is fed into the machine.
- Straightening – The material is straightened to ensure smooth processing.
- Continuous Extrusion – The core process where the material undergoes friction, heat, and pressure to take shape.
- Cooling & Anti-Oxidation – The extruded material is cooled and treated to prevent oxidation.
- Compressed Air Drying – The product is dried to remove any residual water.
- Metering – The length of the extruded material is measured for accuracy.
- Traverse Take-Up – The final product is collected and prepared for further processing or shipment.
Advantages of Continuous Extrusion Over Traditional Methods
The continuous extrusion process provides several key advantages compared to conventional methods. Here’s why manufacturers are making the switch:
1. Reduced Processing Steps & Lower Equipment Investment
Traditional extrusion requires multiple steps, including annealing, heating, acid cleaning, and trimming. Continuous extrusion eliminates these additional steps, reducing the need for extensive equipment and making the production process cleaner and more efficient.
2. Lower Power Consumption & No Preheating Required
One of the biggest advantages of continuous extrusion is its energy efficiency. The process itself generates sufficient heat through friction and pressure, eliminating the need for preheating the metal materials. This results in significantly lower power consumption per unit of production and higher profit.
3. High Rate of Final Product with Less Scrap
Waste reduction is a priority in modern manufacturing. Unlike traditional methods that produce scrap and process residuals, continuous extrusion boasts a material rate of final product over 90%. This means fewer raw materials wasted and higher profit.
4. Superior Product Quality & Conductivity
The continuous extrusion process ensures that the metal undergoes uniform plastic deformation at high temperatures, eliminating internal defects. With high-quality extrusion dies, the process guarantees precision in shape, density, and structural integrity. The increased density of the material leads to lower resistivity and improved conductivity, making it ideal for electrical applications.
5. Ability to Produce Longer & Continuous Lengths
Traditional extrusion processes often limit product length to 30-50 meters. In contrast, continuous extrusion allows produce much longer coil-type products. This makes transportation and further processing easier and more cost-effective.
6. High Automation & Lower Labor Costs
Automation is key to reducing labor costs and increasing efficiency. Continuous extrusion machines are designed for automated control, requiring only two operators per production line. Changing production sizes is as simple as replacing the mold, making it ideal for manufacturers needing flexibility in small-batch production.
Applications of Continuous Copper and Aluminum Extrusion Machines
Continuous extrusion technology is widely used in various industries due to its efficiency and product quality. Some common applications include:
- Electrical & Power Transmission – Copper busbars and aluminum conductors benefit from the improved conductivity and precision offered by continuous extrusion.
- Automotive Industry – Aluminum profiles for car components enhance fuel efficiency and sustainability.
- Construction & Infrastructure – High-quality copper and aluminum extrusions are used in building facades, railings, and structural components.
- HVAC & Refrigeration – Aluminum tubes and profiles are essential for heat exchangers and cooling systems.
Is Copper and Aluminum Continuous Extrusion Suit for Your Business?
If you’re looking to modernize your metal manufacturing process, reduce costs, and improve product quality, investing in a continuous extrusion machine is a smart choice. The combination of reduced processing steps, energy efficiency, and superior product quality makes it an attractive solution for companies aiming to stay competitive in today’s market.
Final Thoughts
Continuous extrusion technology is transforming how copper and aluminum products are manufactured. With advantages like reduced waste, lower energy consumption, and improved conductivity, it’s no surprise that more manufacturers are adopting this innovative machine. If you’re in the metal processing industry, now is the time to explore how continuous extrusion can simplify your production and improve your business.
Ready to take the next step? Please contact Beijing Orient Pengsheng Tech. Co., Ltd., to learn more about how our continuous copper and aluminum extrusion machine can revolutionize your manufacturing process.
